HYDRAULIC PIPE CLAMPS

Hydraulic pipe clamps are devices used to secure and support hydraulic pipes or tubes in a hydraulic system. These clamps are typically made of metal and are designed to withstand the high pressure and vibrations commonly encountered in hydraulic applications. Hydraulic pipe clamps are used to prevent movement, vibration, and noise in hydraulic pipes, ensuring that they remain securely in place and do not cause damage to the system or surrounding components.

Technical Specification

MANUFACTURING STANDARD : As per DIN 3015

SERIES : Standard Series, Heavy Series, Twin Series, Aluminium Series, Multi Layer

SIZE

Standard Series 6 mm to 76.1 mm
Heavy Series 6 mm to 219 mm
Twin Series 6 mm to 42 mm

GROUP

Standard Series Group 1 to Group 7
Heavy Series Group 1 to Group 8
Twin Series Group 1 to Group 5

MATERIAL

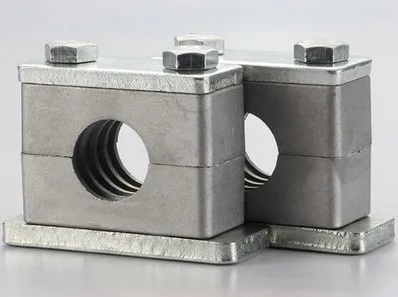

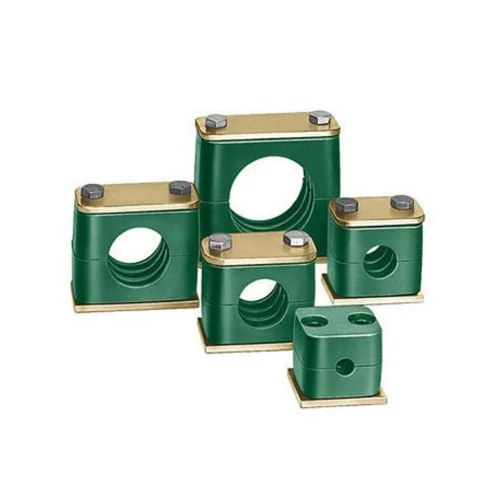

Clamp Body - Polypropylene (Green) & Polyamide (Black), Aluminium (Silver)
Cover Plate - Carbon Steel (Zinc Plated), Stainless Steel 304, Stainless Steel 316
Weld Plate - Carbon Steel (Zinc Plated), Stainless Steel 304, Stainless Steel 316
Bolts - Carbon Steel (Zinc Plated) - 4.6 Grade, 8.8 Grade, 10.9 Grade, Stainless Steel 304, Stainless Steel 316

WORKING PRESSURE : 100 PSI To 10000 PSI

BRAND : PANARA

EQUIVALENT TO : STAUFF/PARKER/SWAGELOK
