HYDRAULIC TUBE FITTINGS

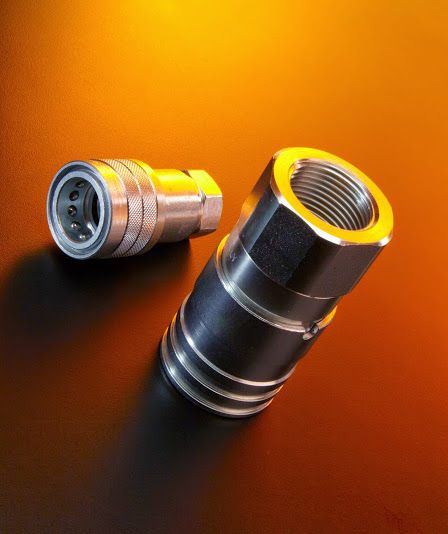

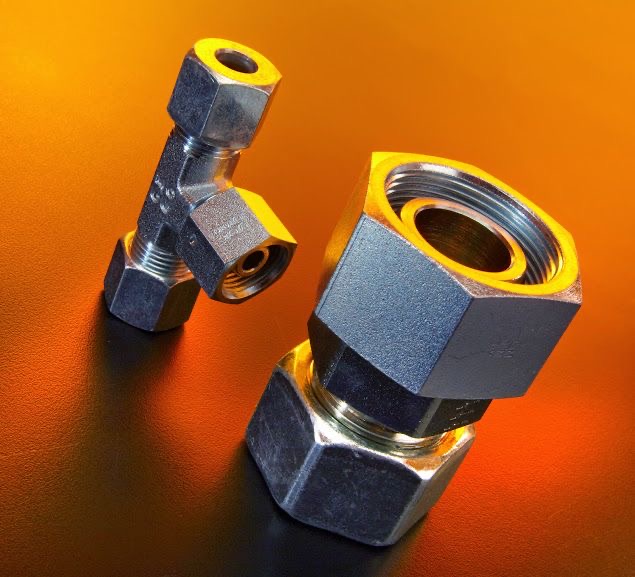

Hydraulic tube fittings are components used to connect tubes in hydraulic systems. These fittings provide a leak-free connection that can withstand high pressure and temperature conditions commonly found in hydraulic applications. Hydraulic tube fittings come in various types, such as flare fittings, compression fittings, and quick disconnect fittings, each suitable for different hydraulic system requirements.

Technical Specification

MANUFACTURING STANDARD : As per DIN 2353 / EN ISO 8434-1 Standard.

SERIES : Very Light (LL) Series, Light (L) Series, Heavy (S) Series.

SIZE

  • LL Series 4LL, 8LL, 10LL, 12LL
  • L Series 6L, 8L, 10L, 12L, 15L, 18L, 22L, 28L, 35L, 42L
  • S Series 6S, 8S, 10S, 12S, 16S, 20S, 25S, 30S, 38S

PRESSURE

  • LL Series Up to 100 Bar
  • L Series Up to 500 Bar
  • S Series Up to 800 Bar

DESIGN : Forged Body Or Bar Stock Body

OTHER NON STANDARD SIZES WE OFFER

  • 1/4" NB, 3/8" NB, ½" NB, ¼" NB, 1" NB, 1¼" NB, 1½" NB & 2" NB.

MATERIAL

  • Carbon Steel, Stainless Steel, Stainless Steel 304, Stainless Steel 304I, Stainless Steel 316, Stainless Steel 316I, Stainless Steel 316TI, Stainless Steel 310, Brass, Copper, Duplex, Super Duplex, Inconel, Monel, Hastelloy, 254 Smo, 904I, Titanium, Cupro Nickel.

END CONNECTION : BSP, BSPT, NPT, UNF, Metric

CONE TYPE : 24 Degree Cone

COATING & SURFACE TREATMENT

  • Trivalent Zinc, Yellow Passivatin, Black Phosphatized, Crome Vi Free Plating, Nickel Plating, Cadmium Plating, Stainless Steel Bright Finish, Electro Plating and Any custom plating as per customers requirement

BRAND : PANARA

EQUIVALENT TO : PARKER
