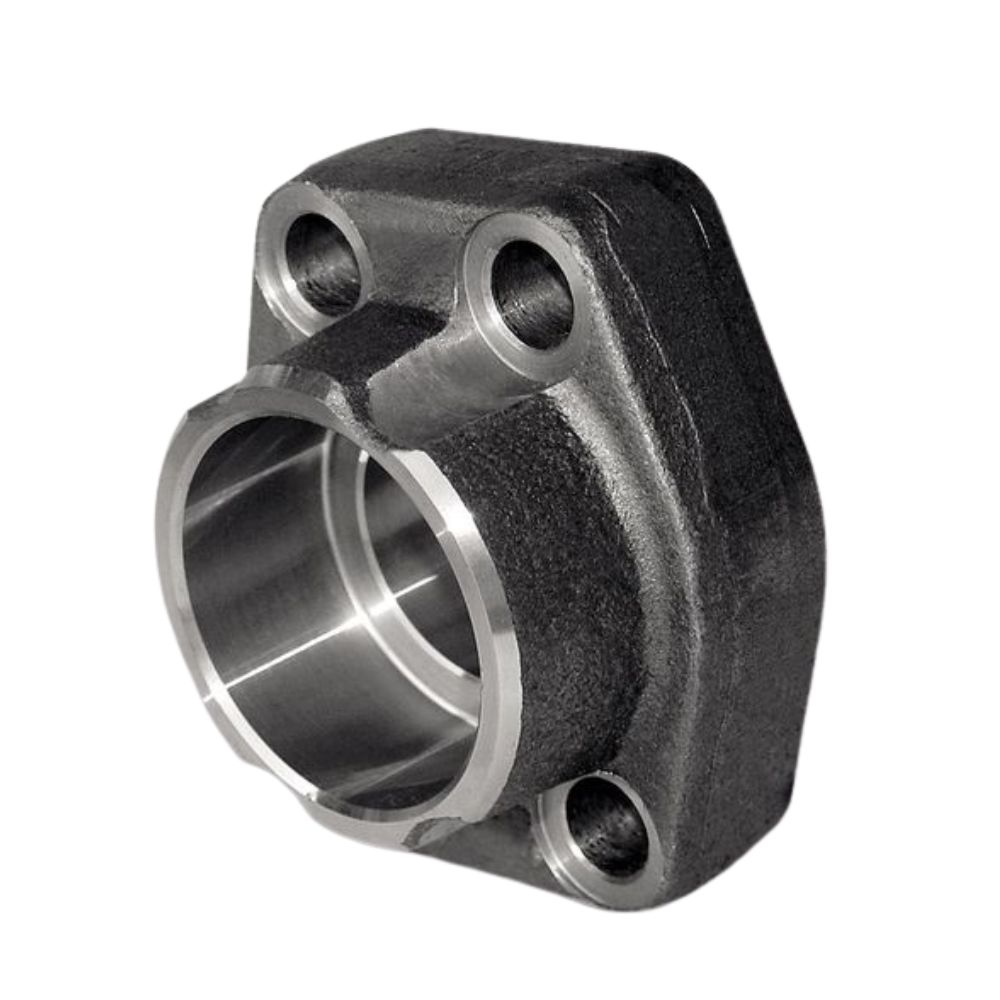

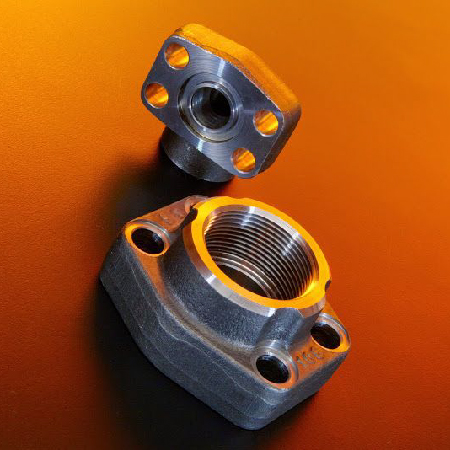

SAE FLANGES

SAE flanges are critical components in hydraulic systems, providing a secure, leak-free connection for fluid power applications. Understanding the types, sizes, and uses of SAE flanges is essential for maintaining efficient hydraulic systems. In this guide, we'll explore everything you need to know about SAE flanges.

Technical Specification

STANDARD : SAE J 518C/ ISO 6162

SIZE

  • SAE Code 61 (3000 Series) - ½ NB (DN 15) to 5" NB (DN 125)
  • SAE Code 62 (6000 Series) - ½ NB (DN 15) to 5" NB (DN 125)

PRESSURE RATING : 300 PSI (210 BAR) & 6000 PSI | (420 BAR)

MATERIAL

  • FLANGES- Carbon Steel - ST 52.3, Stainless Steel - SS 304, SS 316, SS 321, SS 316TL, Duplex, Monel, Inconel
  • Allen Bolts - 8.8 Grade, 10.9 Grade, 4.6 Grade, SS 304 & SS 316 O-Ring - NBR & Viton

DESIGN : Forged Body & Bar Stock Body

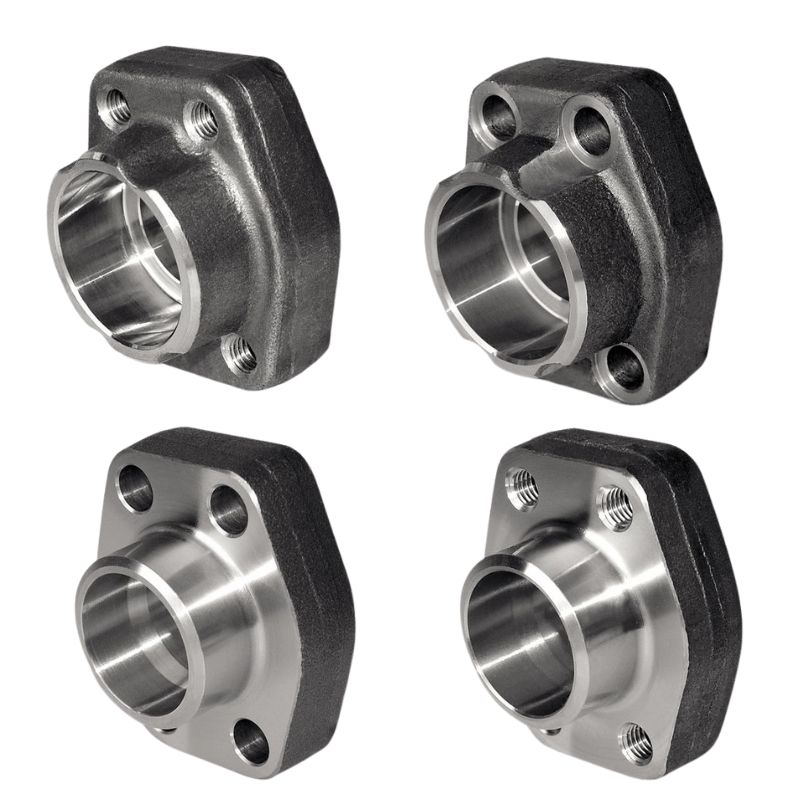

FLANGE FACE TYPE : Flat Face & O-Ring Face

FLANGE SET

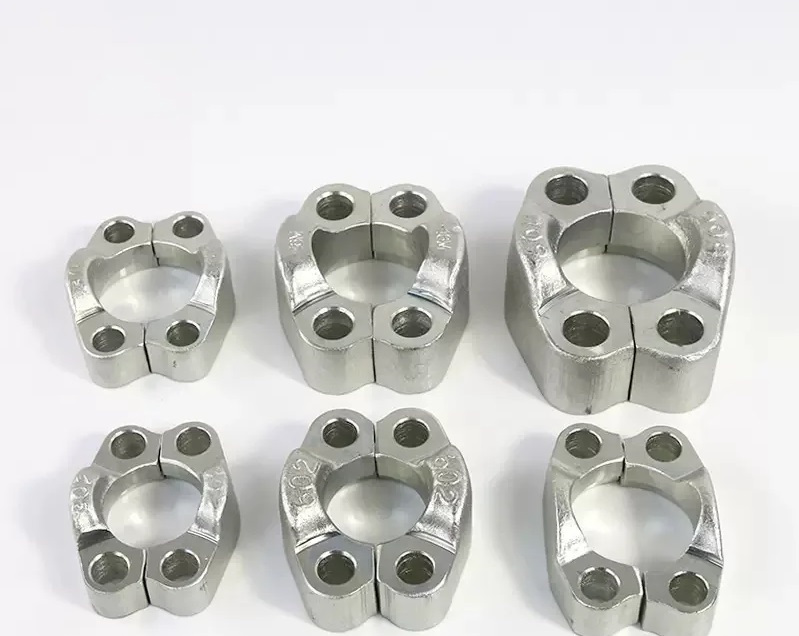

  • Panara hydrotech offers full set which comprises of Single or Double Flange (O-Ring Face & Flat Face), 4 Allen Bolts & 1 O-Ring

COATING / SURFACE TREATMENT

  • Black Phosphatised, Black Oiled, Trivalen Zinc Platin, Yellow Passivation, Stainless Steel Bright Finish, Electro Plating & Any Custom Plating as per customers Requirement.

BRAND : PANARA

EQUIVALENT TO : STUFF & PARKER
